Discussion Starter · #1 ·
i'm gonna tackle installing the boost gauge myself... i know someone had posted a pic of where they tapped in but it was a close up so i couldnt make it out if i was looking in my engine bay....can any one give me an idea ..also i dont want to use the vinyl tubing instead use silicone hose what size is best? any info guys i would appreciate it... <IMG NAME="icon" SRC="http://********************/smile/emthup.gif" BORDER="0">


·
Registered
Joined
·
66 Posts
deerok,<br>I'll try to remember to get a photo of my tap solution tomorrow and post it. In the meantime, if you look at the intake manifold, on the right is one vacuum line port going straight back with a small rubber line. I put a T in that line and it relays vac and boost just fine.<br>Bob S.


·
Registered
Joined
·
2,165 Posts
Re: Exact Line to tap into for the boost gauge (deerok)

<IMG SRC="http://img.photobucket.com/albums/v179/clee130/s60/vacline1.jpg" BORDER="0"><IMG SRC="http://img.photobucket.com/albums/v179/clee130/s60/vacline2.jpg" BORDER="0"><p>Good Luck <IMG NAME="icon" SRC="http://********************/smile/emthup.gif" BORDER="0"> <IMG NAME="icon" SRC="http://www.vwvortex.com/vwbb/smile.gif" BORDER="0">


·
Registered
Joined
·
550 Posts
Discussion Starter · #6 ·
Re: (rwsams)

sweeeeet.. you guys are great!!! thanks <IMG NAME="icon" SRC="http://********************/smile/emthup.gif" BORDER="0">


·
Registered
Joined
·
497 Posts
Re: (deerok)

Just to help clarify, you guys should make a "faux compass" to point to the front, and right/left of the car. I assumed you were taking a picture from straight on, and when I went outside to check, I saw where the line was.<p>To steal pictures from another thread, this shows it clearly.<br> <IMG SRC="http://img.photobucket.com/albums/v179/clee130/s60/DSC00010Medium.jpg" BORDER="0"><p> <IMG SRC="http://img.photobucket.com/albums/v179/clee130/s60/DSC00009Medium.jpg" BORDER="0">


·
Registered
Joined
·
2,999 Posts
Re: Exact Line to tap into for the boost gauge (kmg_S60R)

<TABLE WIDTH="90%" CELLSPACING=0 CELLPADDING=0 ALIGN=CENTER><TR><TD><i>Quote, originally posted by <b>kmg_S60R</b> »</i></TD></TR><TR><TD CLASS="quote"><IMG SRC="http://img.photobucket.com/albums/v179/clee130/s60/vacline2.jpg" BORDER="0"></TD></TR></TABLE><br>I like the dot and the circle approach <IMG NAME="icon" SRC="http://********************/smile/emthup.gif" BORDER="0"><p>So... any good reason for choosing that hose? Is it just the correct diameter or something? (I don't have a boost gauge and haven't really examined any.)<p>Also, anyone know what that hose down and to the right of the hose in question is? (The one that goes into the brass fitting.)<p>Thanks.<p>


·
Registered
Joined
·
2,165 Posts
Re: Exact Line to tap into for the boost gauge (StarmanDXE)

<TABLE WIDTH="90%" CELLSPACING=0 CELLPADDING=0 ALIGN=CENTER><TR><TD><i>Quote, originally posted by <b>StarmanDXE</b> »</i></TD></TR><TR><TD CLASS="quote"><br>I like the dot and the circle approach <IMG NAME="icon" SRC="http://********************/smile/emthup.gif" BORDER="0"><p>So... any good reason for choosing that hose? Is it just the correct diameter or something? (I don't have a boost gauge and haven't really examined any.)<p>Also, anyone know what that hose down and to the right of the hose in question is? (The one that goes into the brass fitting.)<p>Thanks.</TD></TR></TABLE><p>That hose is close to the intake manifold and it allows for the best indication of a true boost and vacumn signal based off the actual manifold pressure.<p>That hose you are asking about runs through a series of vacumn solenoids to deliver manifold pressure/vacumn data to help regulate engine contol and AF Ratios. <IMG NAME="icon" SRC="http://********************/smile/emthup.gif" BORDER="0">


·
Registered
Joined
·
497 Posts
Re: Exact Line to tap into for the boost gauge (kmg_S60R)

I'm having a tough time setting up my vacuum lines and T adapter.<br>I bought an 1/8" T adapter from an auto parts store, but it is the exact same diameter as the tubing I got with my IPD kit. I haven't seen how it would fit on the stock hose.<br>Someone that has done it, what size T adapter did you get, and what size was your tubing?


·
Registered
Joined
·
497 Posts
Re: (xUNiQuE)

I haven't installed my tubing yet. I can't even get the tubing onto the T adapter.<br>But allegedly there is room next to the hood release


·
Registered
Joined
·
550 Posts
Discussion Starter · #14 ·
Re: (Tiny)

im going throu the fuse box in that hole that has the foam plug in it.. into the fender and out to the engine compartment.


·
Registered
Joined
·
4,272 Posts
Re: (deerok)

<TABLE WIDTH="90%" CELLSPACING=0 CELLPADDING=0 ALIGN=CENTER><TR><TD><i>Quote, originally posted by <b>deerok</b> »</i></TD></TR><TR><TD CLASS="quote">im going throu the fuse box in that hole that has the foam plug in it.. into the fender and out to the engine compartment.</TD></TR></TABLE><br> <IMG NAME="icon" SRC="http://********************/smile/emthup.gif" BORDER="0"> <IMG NAME="icon" SRC="http://********************/smile/emthup.gif" BORDER="0"> I went throught the hood release, major PIA go with Benders suggestion


·
Registered
Joined
·
23 Posts
Re: (jstro)

Also used where the latch cable goes thru the firewall for the nylon tube.<p>What is the best way to tap the power for the backlighting ?<br>


·
Registered
Joined
·
4,640 Posts
Re: (redz1006)

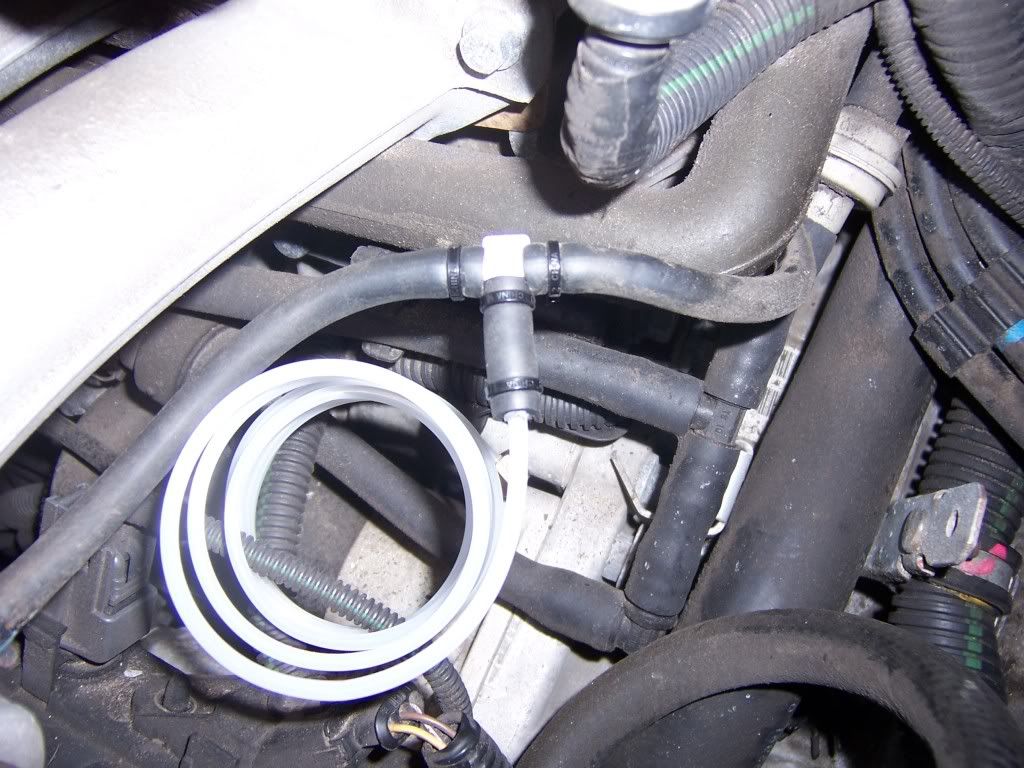

I also went though the hood release cable area, it was easy with a coat hanger snake and brings it right out under the dash.<p>How I attached the line to the T-fitting, used a random steel tube to slip over the plastic hose. The metal tube was barely big enough to squeeze the hard plastic tube into, good tight seal. The metal adapter then slid right into the vac hose, vac hose attached to the T some wire tires and your all good. <p><IMG SRC="http://i23.photobucket.com/albums/b359/NJGreenBudd/101_6537-1.jpg" BORDER="0"><p>I was probably going to use something like this to tap into the power supply for the cigarette lighter or something to power the light.<br><IMG SRC="http://i23.photobucket.com/albums/b359/NJGreenBudd/452713.jpg" BORDER="0">


·
Registered
Joined
·
550 Posts
Discussion Starter · #18 ·
Re: (NJGreenBudd)

thats what i used a add -a -circuit 10 amp 3.99 at auto zone and tapped into the position light fuse worked perfectly.
